FUJI XPF-L

SALES STATUS: Sold

FUJI XPF-L

IBE SMT Inventory ID : 130612-001
FUJI Serial Number : SE0087020
Vintage : JUN 2009
Hours : 2,252

Details

(2) Auto Revolvers with Nozzles
(6) Single Nozzles
(2) MFU-40 Feeder Carts

Specifications ( See Details above for installed options )

FUJI XPF-L Specification:

The XPF is the world's first machine to feature dynamic head exchange.

The machine can switch between a high-speed placing head and a multi-purpose head automatically during production to ensure that the most efficient head for the current task is being used.

This includes the ability to switch to a glue head, meaning that glue application and part placement can be performed at the same machine.

Part Size:
01005 to 68x68mm Depending on Head Type

Speed:
* Revolver Head: 25,000 cph
* Single Nozzle: 9,000 cph
* M4 Auto Tool: Up to 10,500 cph
* Glue Tool: 0.2 sec/shot

PCB loading time: 1.8 sec
PCB size (LXW): Up to 457 x 356 mm
Thickness 0.4 (0.3) to 5.0 mm

Machine Dimensions:
L: 1,500 mm, W: 1,607.5 mm, H: 1,419.5 mm

Machine body XPF-L: 1,500 kg
MFU-40: Approx. 240 kg (with W8 feeders loaded)
BTU-AII: Approx. 120 kg, BTU-B: Approx. 15 kg, MTU-AII: Approx. 615 kg (with trays/feeders loaded)

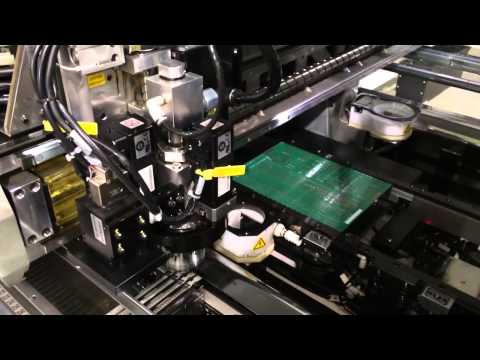

Video
